Geodesic Distances and Isolines

This example demonstrates geodesic distance computation, isoline extraction, and mesh splitting using COMPAS CGAL.

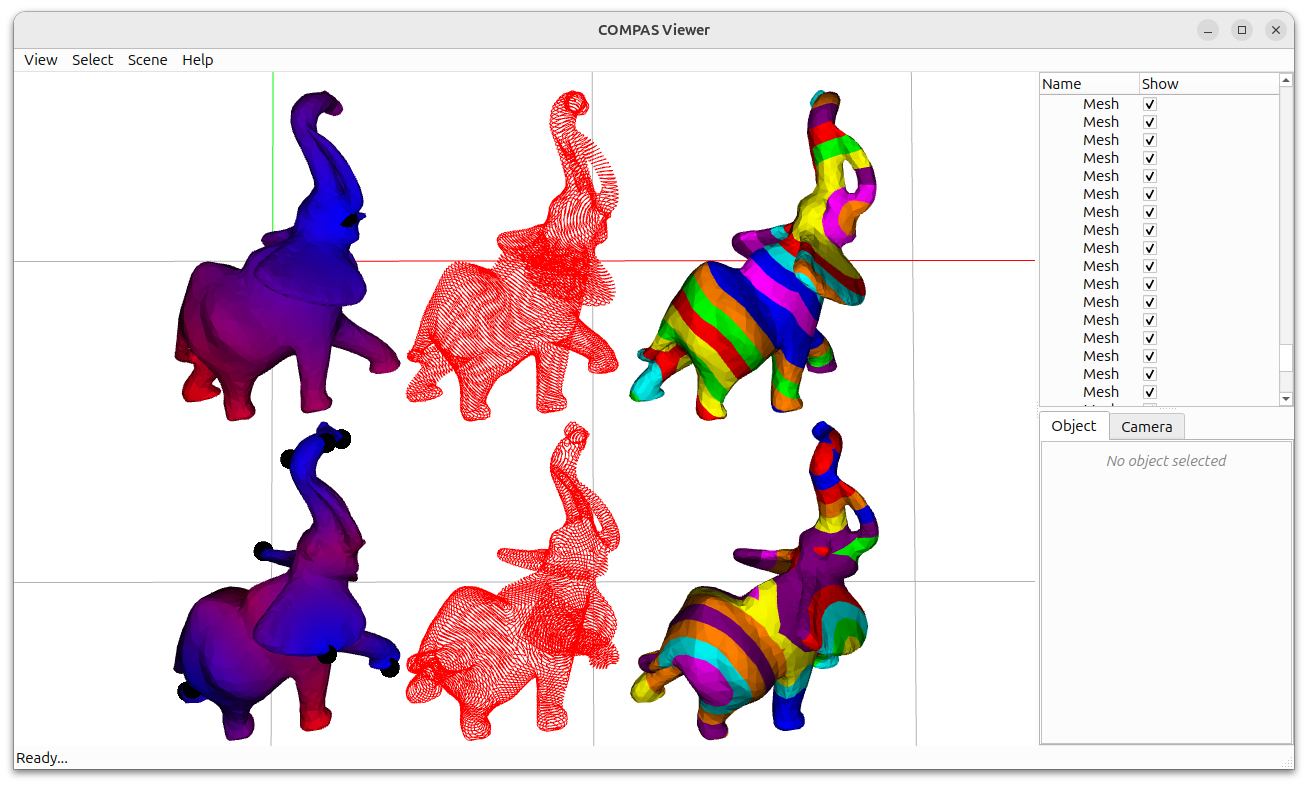

The visualization shows two rows:

• Row 1 (Single Source): Geodesic distances from a single vertex
• Row 2 (Multiple Sources): Geodesic distances from all bounding box corners

Each row displays three columns:

• Heat Field: Mesh colored by geodesic distance (blue → red gradient) with source points marked in black
• Isolines: Extracted isoline polylines at regular distance intervals
• Split Mesh: Mesh split into components along the isolines, each colored differently

Key Features:

• Heat method geodesic distance computation via heat_geodesic_distances
• Reusable solver via HeatGeodesicSolver for multiple queries
• Isoline extraction as polylines via geodesic_isolines
• Mesh splitting along isolines via geodesic_isolines_split

from pathlib import Path

import numpy as np
from compas.colors import Color
from compas.colors import ColorMap
from compas.datastructures import Mesh
from compas.geometry import Box
from compas.geometry import Point
from compas.geometry import Polyline
from compas.geometry import Translation
from compas_viewer import Viewer
from compas_viewer.config import Config

from compas_cgal.geodesics import HeatGeodesicSolver
from compas_cgal.geodesics import geodesic_isolines
from compas_cgal.geodesics import geodesic_isolines_split
from compas_cgal.geodesics import heat_geodesic_distances


def make_mesh(V, F, offset):
    m = Mesh.from_vertices_and_faces(V, F)
    m.transform(Translation.from_vector([offset[0], offset[1], 0]))
    return m


def make_vertex_colors(distances):
    return {i: cmap(d, minval=distances.min(), maxval=distances.max()) for i, d in enumerate(distances)}


def make_isolines(sources, offset):
    polylines = []
    for pts in geodesic_isolines((V, F), sources, ISOVALUES):
        points = [[pts[i, 0] + offset[0], pts[i, 1] + offset[1], pts[i, 2]] for i in range(len(pts))]
        polylines.append(Polyline(points))
    return polylines


def make_split_meshes(sources, offset):
    meshes = []
    for i, (v, f) in enumerate(geodesic_isolines_split((V, F), sources, SPLIT_ISOVALUES)):
        m = Mesh.from_vertices_and_faces(v.tolist(), f.tolist())
        m.transform(Translation.from_vector([offset[0], offset[1], 0]))
        meshes.append((m, COLORS[i % len(COLORS)]))
    return meshes


def make_source_points(sources, offset):
    return [Point(V[s][0] + offset[0], V[s][1] + offset[1], V[s][2]) for s in sources]


# =============================================================================
# Load mesh
# =============================================================================

FILE = Path(__file__).parent.parent.parent / "data" / "elephant.off"
mesh = Mesh.from_off(FILE)
mesh.quads_to_triangles()
V, F = mesh.to_vertices_and_faces()
V_np = np.array(V)

# =============================================================================
# Config
# =============================================================================

X_OFF, Y_OFF = 0.75, 1.0
ISOVALUES = [i / 50 for i in range(50)]
SPLIT_ISOVALUES = [i / 20 for i in range(20)]
COLORS = [
    Color.red(),
    Color.orange(),
    Color.yellow(),
    Color.green(),
    Color.cyan(),
    Color.blue(),
    Color.purple(),
    Color.magenta(),
]
cmap = ColorMap.from_two_colors(Color.blue(), Color.red())

# =============================================================================
# Single sources
# =============================================================================

src1 = [0]
dist1 = heat_geodesic_distances((V, F), src1)

# =============================================================================
# Multiple sources
# =============================================================================

solver = HeatGeodesicSolver((V, F))
bbox = Box.from_points(V_np)
src2 = list(dict.fromkeys([int(np.argmin(np.linalg.norm(V_np - c, axis=1))) for c in bbox.vertices]))
dist2 = solver.solve(src2)

# =============================================================================
# Viz
# =============================================================================

config = Config()
config.camera.target = [X_OFF, -Y_OFF / 2, 0]
config.camera.position = [X_OFF, -2.0, 0.8]

viewer = Viewer(config=config)

# Row 1: Single Source

g1 = viewer.scene.add_group("Single Source")

g1.add(
    make_mesh(V, F, (0, 0)),
    use_vertexcolors=True,
    vertexcolor=make_vertex_colors(dist1),
    show_lines=False,
)

for pt in make_source_points(src1, (0, 0)):
    g1.add(pt, pointcolor=Color.black(), pointsize=20)

for pl in make_isolines(src1, (X_OFF, 0)):
    g1.add(pl, linecolor=Color.red(), lineswidth=5)

for m, c in make_split_meshes(src1, (2 * X_OFF, 0)):
    g1.add(m, facecolor=c, show_lines=False)

# Row 2: Multiple Sources

g2 = viewer.scene.add_group("Multiple Sources")

g2.add(
    make_mesh(V, F, (0, -Y_OFF)),
    use_vertexcolors=True,
    vertexcolor=make_vertex_colors(dist2),
    show_lines=False,
)

for pt in make_source_points(src2, (0, -Y_OFF)):
    g2.add(pt, pointcolor=Color.black(), pointsize=20)

for pl in make_isolines(src2, (X_OFF, -Y_OFF)):
    g2.add(pl, linecolor=Color.red(), lineswidth=5)

for m, c in make_split_meshes(src2, (2 * X_OFF, -Y_OFF)):
    g2.add(m, facecolor=c, show_lines=False)

viewer.show()
