Isolines from Scalar Fields

This example demonstrates isoline extraction from arbitrary vertex scalar fields using COMPAS CGAL.

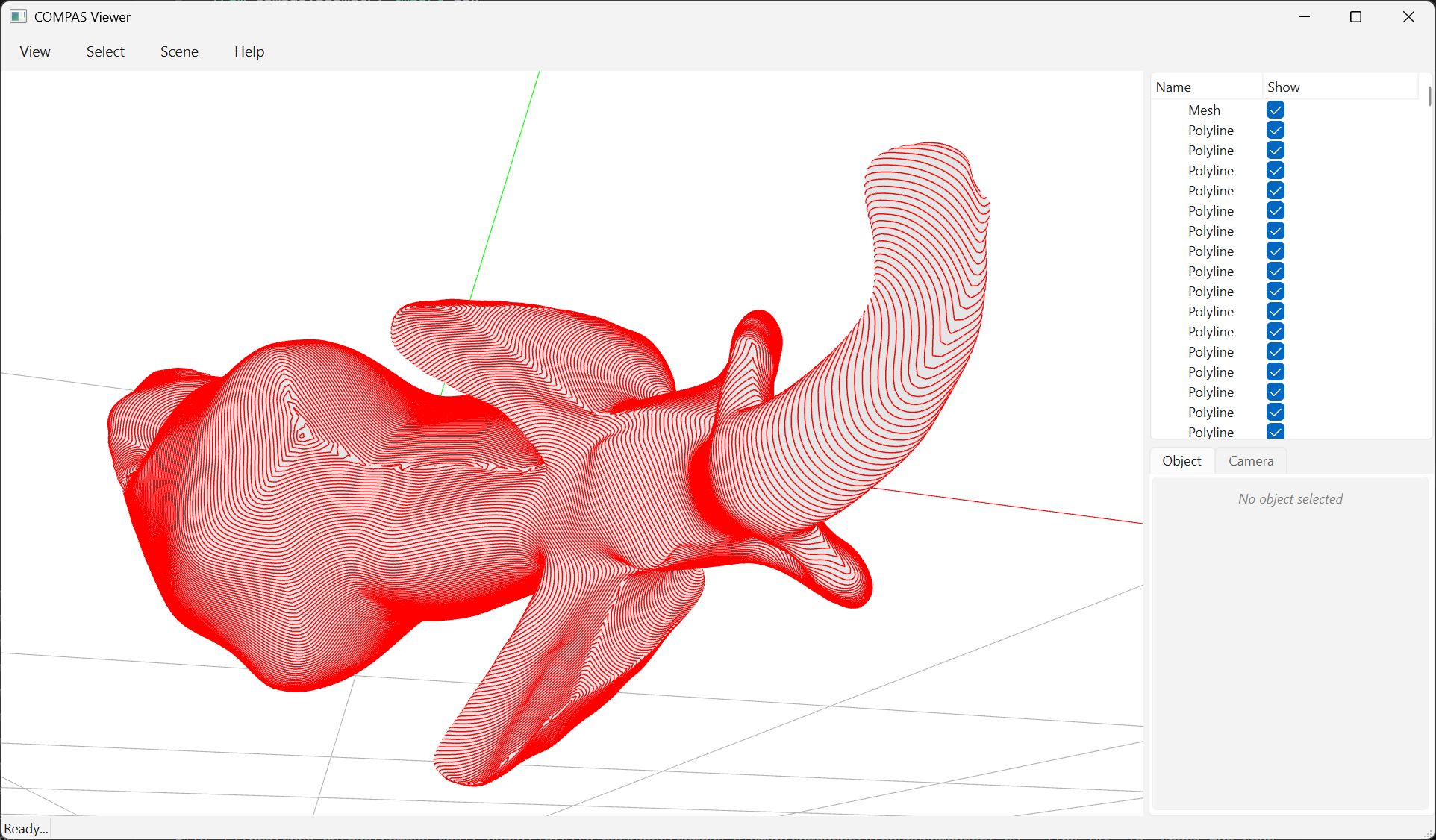

The visualization shows an elephant mesh with isolines extracted from geodesic distances computed from five source points: the four feet and the snout.

Key Features:

• Generic isoline extraction from any vertex scalar field via isolines
• Support for explicit isovalues or automatic even spacing
• Adaptive resampling for smoother output
• Optional Laplacian smoothing

from pathlib import Path

import numpy as np
from compas.colors import Color
from compas.datastructures import Mesh
from compas.geometry import Polyline
from compas_viewer import Viewer

from compas_cgal.geodesics import heat_geodesic_distances
from compas_cgal.isolines import isolines
from compas_cgal.subdivision import mesh_subdivide_loop

# =============================================================================
# Load mesh and subdivide
# =============================================================================

FILE = Path(__file__).parent.parent.parent / "data" / "elephant.off"
mesh = Mesh.from_off(FILE)
mesh.quads_to_triangles()

V, F = mesh_subdivide_loop(mesh.to_vertices_and_faces(), k=2) # k=4 for proper smoothness
mesh = Mesh.from_vertices_and_faces(V.tolist(), F.tolist())

# =============================================================================
# Find source vertices: 4 feet and snout
# =============================================================================

V = np.array(mesh.vertices_attributes("xyz"))

# feet: find lowest Y vertex in each XZ quadrant
y_min = V[:, 1].min()
low_verts = np.where(V[:, 1] < y_min + 0.15)[0]

feet = []
for sx in [-1, 1]:  # back/front (X)
    for sz in [-1, 1]:  # left/right (Z)
        mask = (np.sign(V[low_verts, 0]) == sx) & (np.sign(V[low_verts, 2]) == sz)
        candidates = low_verts[mask]
        if len(candidates):
            foot = candidates[np.argmin(V[candidates, 1])]
            feet.append(int(foot))

# snout: max X (trunk tip)
snout = int(np.argmax(V[:, 0]))

sources = feet + [snout]

# =============================================================================
# Compute scalar field and extract isolines
# =============================================================================

vf = mesh.to_vertices_and_faces()
distances = heat_geodesic_distances(vf, sources)

for key, d in zip(mesh.vertices(), distances):
    mesh.vertex_attribute(key, "distance", d)

polylines = isolines(mesh, "distance", n=300, smoothing=0, resample=False)

# =============================================================================
# Viz
# =============================================================================

viewer = Viewer()

viewer.scene.add(mesh, show_lines=False)

for pts in polylines:
    points = [pts[i].tolist() for i in range(len(pts))]
    viewer.scene.add(Polyline(points), linecolor=Color.red(), lineswidth=3)

viewer.show()
