Mesh Skeletonizationยค

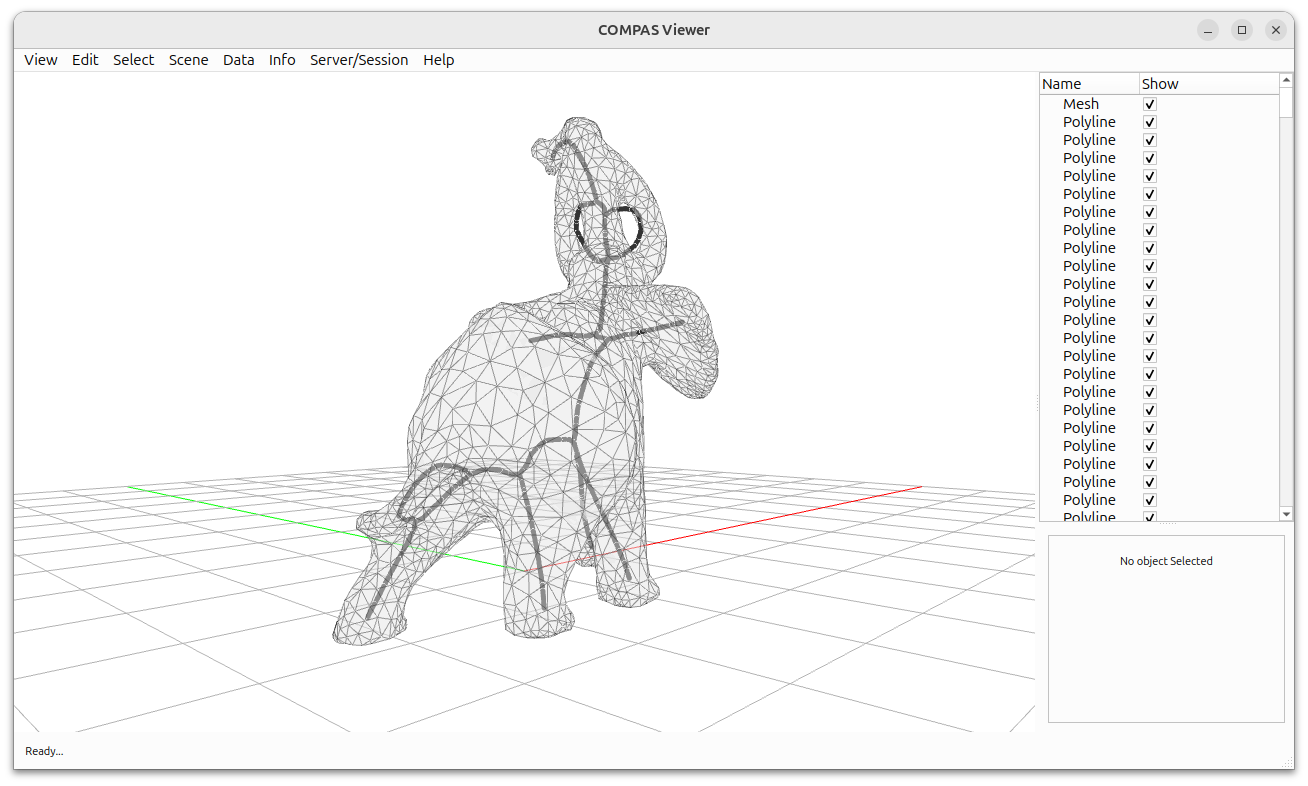

Mesh Skeletonization

This example demonstrates how to compute the geometric skeleton of a triangle mesh using COMPAS CGAL.

Key Features:

  • Loading and transforming OFF mesh files
  • Mesh subdivision using Loop scheme
  • Skeleton computation using mean curvature flow
  • Visualization of mesh and skeleton polylines
import math
from pathlib import Path

from compas.datastructures import Mesh
from compas.geometry import Polyline
from compas.geometry import Rotation
from compas.geometry import Scale
from compas.geometry import Translation
from compas_viewer import Viewer

from compas_cgal.skeletonization import mesh_skeleton

# =============================================================================
# Input
# =============================================================================

input_file = Path(__file__).parent.parent.parent / "data" / "elephant.off"

rotation_x = Rotation.from_axis_and_angle([1, 0, 0], math.radians(60))
rotation_y = Rotation.from_axis_and_angle([0, 1, 0], math.radians(5))
rotation = rotation_y * rotation_x
scale = Scale.from_factors([5, 5, 5])
translation = Translation.from_vector([0, 0, 2])

mesh = Mesh.from_off(input_file).transformed(translation * rotation * scale)

v, f = mesh.to_vertices_and_faces(triangulated=True)

# =============================================================================
# Skeleton
# =============================================================================

skeleton_edges = mesh_skeleton((v, f))

polylines = []
for start_point, end_point in skeleton_edges:
    polyline = Polyline([start_point, end_point])
    polylines.append(polyline)

# ==============================================================================
# Visualize
# ==============================================================================

viewer = Viewer()
viewer.renderer.camera.target = [0, 0, 1.5]
viewer.renderer.camera.position = [-5, -5, 1.5]

viewer.scene.add(mesh, opacity=0.5, show_points=False)

for polyline in polylines:
    viewer.scene.add(polyline, linewidth=5, show_points=True)

viewer.show()
