Examples in Rhino/Grasshopper

Note

This tutorial assumes that you have already installed compas_eve. If you haven’t, please follow the instructions in the installation section.

COMPAS EVE provides tools to work with events inside Rhino/Grasshopper, as well as the ability to run long-running tasks in the background, which would otherwise block the UI.

Long-running tasks

A long-running task is any snippet of code that takes a long time to execute. Normally, this would freeze the Grasshopper user interface. COMPAS EVE provides a mechanism to run such tasks in the background, so that the user can continue working with Grasshopper while the task is running.

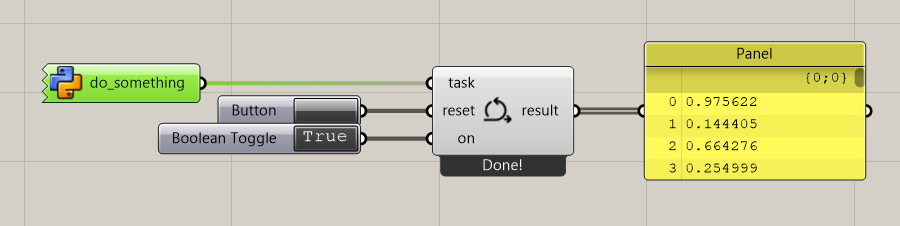

In order to use it, add a Background task component to your Grasshopper definition, and connect an input with a python function containing the code that needs to run in the background. The only requirement is that this function must accept a worker argument, which is an instance of BackgroundWorker.

The following code exemplifies how to use it to create a simple background task that generates a list of random values. The function adds some delay to simulate a long-running task.

import time
import random

def do_something(worker):
    result = []

    for i in range(100):
        result.append(random.random())
        worker.display_progress(len(result) / 100)
        time.sleep(0.05)

    worker.display_message("Done!")

    return result

It is also possible to update the results during the execution of the task. The result can be of any type, in the previous example it was a list of numbers.

In the following example, the code generates a list of randomly placed Rhino points and continuously updates the results as the list grows. The points will appear in the Rhino Viewport even before the task has completed.

import time
import random
import Rhino.Geometry as rg

def do_something(worker):
    result = []

    for i in range(100):
        x, y = random.randint(0, 100), random.randint(0, 100)
        result.append(rg.Point3d(x, y, 0))
        worker.update_result(result)
        time.sleep(0.01)

    worker.display_message("Done!")

    return result
