Architecture

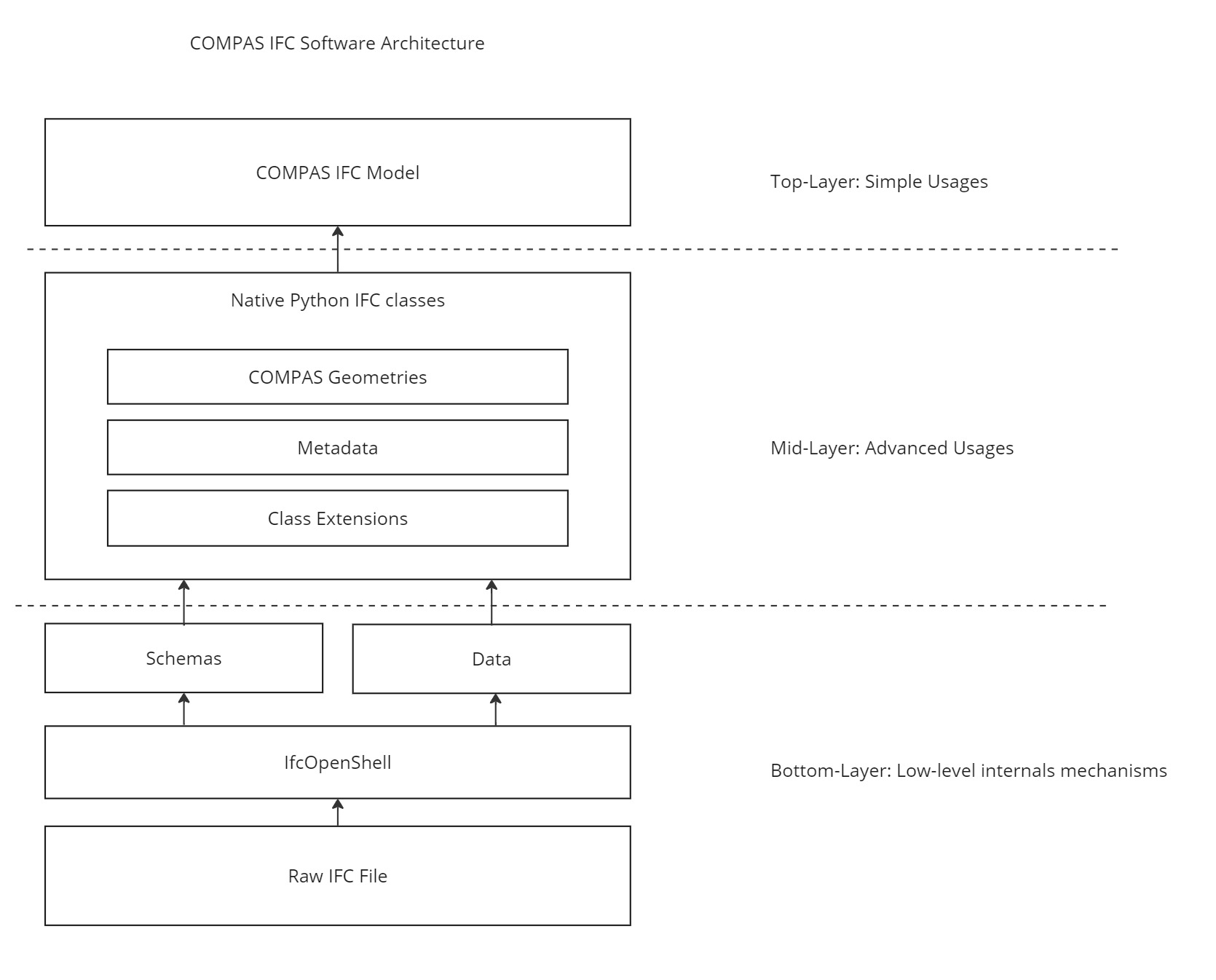

COMPAS IFC is organised as a three-layer front-end / back-end structure that separates what users interact with from how IFC data is read, written, and kept consistent. The architecture is described in detail in chapter 4 of the underlying thesis (Data Model for Humans); this page summarises it.

Top layer — front-end API

The user-facing API consists of four components:

BuildingInformationModel: The orchestrator. Opens, queries, modifies, and saves IFC files. Holds project-level metadata (name, schema version, units) and exposes the spatial tree, the interaction graph, the element factory, the validation engine, and visualisation helpers.
GenericElement: A single element class that represents every IFC product subclass — IfcWall, IfcSlab, IfcSpace, IfcSite, IfcBuildingStorey, and the rest. Distinguished by an ifc_type string that maps back to the appropriate IFC class on export. Custom strings without a matching IFC class fall back to IfcBuildingElementProxy while preserving the original type as ObjectType.
Spatial tree (model.tree): An explicit tree built on COMPAS’ Tree data structure. Each node has direct parent / children pointers and a placement matrix relative to its parent. Spatial-containment relationships in the IFC schema (IfcRelContainedInSpatialStructure, IfcRelAggregates) are normalised into this tree on import; placement chains that don’t align with the spatial parent are rectified automatically.
Interaction graph (model.graph): A bidirectional graph that captures the non-hierarchical relationships that don’t fit the tree structure — structural connections, MEP system flows, material associations, geometric dependencies (openings, fills, space boundaries). Edges are labelled by category and group, so users can query model.connections, model.space_boundaries, or model.get_interactions_by_group("structural").

Bidirectional mapping layer

The middle layer keeps the front-end abstractions and the underlying IFC file in sync. It is implementation detail — users do not need to interact with it directly — but understanding it helps when reading the source code:

Relationship resolution. Spatial-containment and decomposition relationships are converted to tree edges; structural, MEP, and geometric relationships are converted to graph edges. Round-tripping reverses the process: graph and tree edges are rewritten back into the appropriate IfcRel... instances on save.
Placement-chain rectification. During import, each element’s IfcLocalPlacement.PlacementRelTo is checked against its spatial parent. Misalignments — for instance an opening element placed relative to the storey instead of its host wall — are corrected so that the global position is preserved while the relative transform conforms to the hierarchy.
Representation conversion. Each IFC geometric representation type is routed to the appropriate computational kernel: simple primitives and meshes use the COMPAS core library, while swept solids and freeform B-Reps go through OpenCascade (via compas_occ). Boolean operations are currently evaluated through OpenCascade and the COMPAS core/Shapely path; routing to CGAL (compas_cgal) is planned. The mapping is bidirectional: parametric definitions are preserved on round-trip rather than collapsing to tessellated meshes.
Type normalisation. model.create_element(ifc_type=...) accepts "IfcWall", "Wall", "wall", or any custom string; the value is resolved against the active schema and either mapped to its canonical class name or stored as ObjectType on an IfcBuildingElementProxy.
Property serialisation. Pset definitions and IFC schema attributes are unified into element.properties for reading, and split back into the appropriate sinks (Pset_* instances vs. direct entity attributes) on write.

Bottom layer — IFC schema interface

At the bottom, compas_ifc.file.IFCFile adapts IfcOpenShell to the rest of the toolkit. It handles low-level parsing and writing, schema dispatch (IFC2X3 / IFC4 / IFC4X3), entity creation, and instance lookup. The compas_ifc.entities package provides Python wrappers that add convenience methods (geometry, frame, children, property_sets) to raw ifcopenshell entities; these wrappers are an internal implementation detail of the mapping layer.

Geometry kernels

Three computational kernels combine to cover the full IFC geometry spectrum without degradation:

IFC representation	COMPAS class	Kernel
`IfcBlock`, `IfcSphere`,	`Box`, `Sphere`,	COMPAS core
`IfcCylinder`	`Cylinder`
`IfcExtrudedAreaSolid`,	`Extrusion`	OpenCascade
`IfcRevolvedAreaSolid`
`IfcBooleanResult`,	`Brep` or `Mesh`	CGAL / OpenCascade
`IfcCsgSolid`
`IfcFacetedBrep`	`Mesh`	COMPAS core / CGAL
`IfcAdvancedBrep`	`Brep`	OpenCascade
`IfcTriangulatedFaceSet`,	`Mesh`	COMPAS core
`IfcPolygonalFaceSet`
`IfcBSplineSurface`,	`NurbsSurface`,	OpenCascade
`IfcRationalBSplineCurve`	`NurbsCurve`

Note

CGAL routing (via compas_cgal) is part of the intended architecture but is not yet wired in: the CGAL cells above are currently served by OpenCascade and the COMPAS core mesh path. CGAL integration is planned.

The user-facing API is uniform across kernels: element.volume, element.surface_area, and element.aabb work identically regardless of the underlying representation type.

Validation engine

Custom property requirements are expressed as Pydantic schemas. A Specification ties a schema to the IFC types it applies to. Specifications can be:

attached to model.specifications for enforcement — validation runs inside add_element/create_element and rejects non-conforming insertions immediately; or
passed to model.validate(specs) for advisory checking, which returns per-element ValidationResult records without modifying the model.

Pydantic schemas are substantially more concise than the equivalent IDS (Information Delivery Specification) XML, and they export to JSON Schema for consumption by external tools.
