Planar Slicing

This example demonstrates the complete planar slicing workflow - from mesh to printpoints with brim, raft, and seam control.

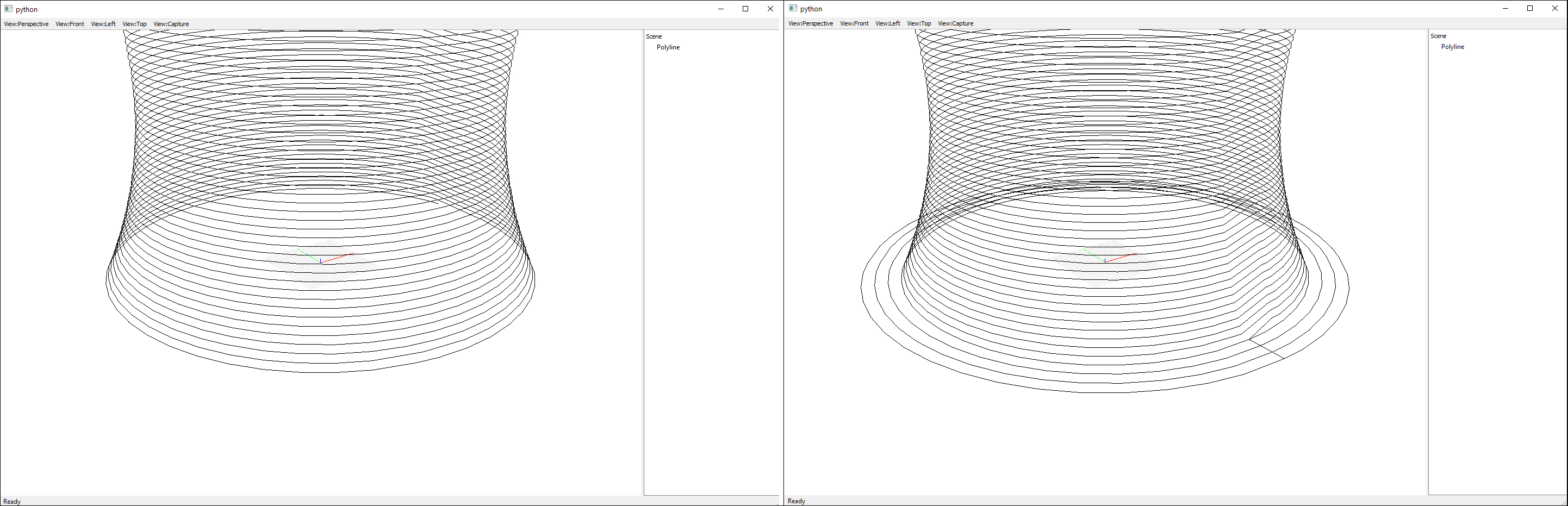

Brim comparison Left: Without brim. Right: With brim for bed adhesion

What You'll Learn

  • Loading and positioning a mesh
  • Basic planar slicing with PlanarSlicer
  • Adding brim and raft for bed adhesion
  • Simplifying paths with RDP algorithm
  • Controlling seam position and smoothness
  • Creating printpoints with fabrication parameters

The Pipeline

flowchart LR
    A[Load Mesh] --> B[Position at Origin]
    B --> C[Slice]
    C --> D[Add Brim/Raft]
    D --> E[Simplify Paths]
    E --> F[Align Seams]
    F --> G[Create PrintPoints]
    G --> H[Set Parameters]
    H --> I[Export JSON]

Step-by-Step Walkthrough

1. Setup and Load Mesh

from pathlib import Path
from compas.datastructures import Mesh
from compas.geometry import Point
from compas_slicer.pre_processing import move_mesh_to_point

# Load the mesh
mesh = Mesh.from_obj(Path("data/simple_vase_open_low_res.obj"))

# Move to origin (important for consistent slicing)
move_mesh_to_point(mesh, Point(0, 0, 0))

Why move to origin?

Moving the mesh ensures the first layer starts at Z=0, which is expected by most 3D printers and simplifies debugging.

2. Slice the Mesh

from compas_slicer.slicers import PlanarSlicer

slicer = PlanarSlicer(mesh, layer_height=1.5)
slicer.slice_model()

This intersects the mesh with horizontal planes spaced 1.5mm apart using CGAL's robust mesh-plane intersection.

3. Align Seams

from compas_slicer.post_processing import seams_align

seams_align(slicer, "next_path")

Seams are where each layer starts/ends. Without alignment, seams appear randomly, creating a visible vertical line. Options:

Mode Description
"next_path" Align with next layer's closest point
"x_axis" Align along X axis
"y_axis" Align along Y axis
"origin" Align toward origin

4. Generate Brim

from compas_slicer.post_processing import generate_brim

generate_brim(
    slicer,
    layer_width=3.0,           # Width of each brim line
    number_of_brim_offsets=4   # Number of concentric loops
)

A brim adds concentric loops around the first layer to improve bed adhesion. Unlike a raft, the brim is on the same layer as the print.

5. Generate Raft

from compas_slicer.post_processing import generate_raft

generate_raft(
    slicer,
    raft_offset=20,            # Distance from model edge
    distance_between_paths=5,   # Spacing between raft lines
    direction="xy_diagonal",    # Line pattern direction
    raft_layers=1              # Number of raft layers
)

A raft creates a sacrificial base layer beneath the print. The model is printed on top of the raft.

Note

Typically use brim OR raft, not both. This example shows both for demonstration.

6. Simplify Paths

from compas_slicer.post_processing import simplify_paths_rdp

simplify_paths_rdp(slicer, threshold=0.6)

The Ramer-Douglas-Peucker algorithm removes points that don't contribute significantly to the path shape. A threshold of 0.6mm means points within 0.6mm of the simplified line are removed.

Before: 10,000 points → After: 2,000 points (faster printing, same quality)

7. Smooth Seams

from compas_slicer.post_processing import seams_smooth

seams_smooth(slicer, smooth_distance=10)

Smooths the transition between layers by blending the path near the seam point over a 10mm distance.

8. Create PrintPoints

from compas_slicer.print_organization import PlanarPrintOrganizer

print_organizer = PlanarPrintOrganizer(slicer)
print_organizer.create_printpoints(generate_mesh_normals=False)

This converts geometric points to PrintPoint objects with fabrication metadata.

9. Set Fabrication Parameters

from compas_slicer.print_organization import (
    set_extruder_toggle,
    add_safety_printpoints,
    set_linear_velocity_constant,
)

# Enable/disable extrusion based on path structure
set_extruder_toggle(print_organizer, slicer)

# Add Z-hop between paths to avoid collisions
add_safety_printpoints(print_organizer, z_hop=10.0)

# Set constant print speed
set_linear_velocity_constant(print_organizer, v=25.0)

10. Export

from compas_slicer.utilities import save_to_json

# Flat format
printpoints_data = print_organizer.output_printpoints_dict()
save_to_json(printpoints_data, OUTPUT_PATH, 'out_printpoints.json')

# Nested format (layer > path > point)
nested_data = print_organizer.output_nested_printpoints_dict()
save_to_json(nested_data, OUTPUT_PATH, 'out_printpoints_nested.json')

Complete Code

--8<-- "examples/1_planar_slicing_simple/example_1_planar_slicing_simple.py"

Running the Example

cd examples/1_planar_slicing_simple
python example_1_planar_slicing_simple.py

Add --visualize flag to see the results:

python example_1_planar_slicing_simple.py --visualize

Output Files

File Description
slicer_data.json Raw slicer output (layers, paths)
out_printpoints.json Flat list of printpoints
out_printpoints_nested.json Nested structure by layer/path

Key Takeaways

  1. Order matters: Brim/raft before simplification, seam alignment early
  2. Simplification saves time: RDP can reduce points 5x with no quality loss
  3. Seam control is important: Random seams create visible artifacts
  4. Safety moves prevent crashes: Z-hop between paths avoids collisions
