Vertical Layer Sorting

This example demonstrates how to handle models with multiple disconnected regions at the same height - like V-shapes, trees, or branching structures.

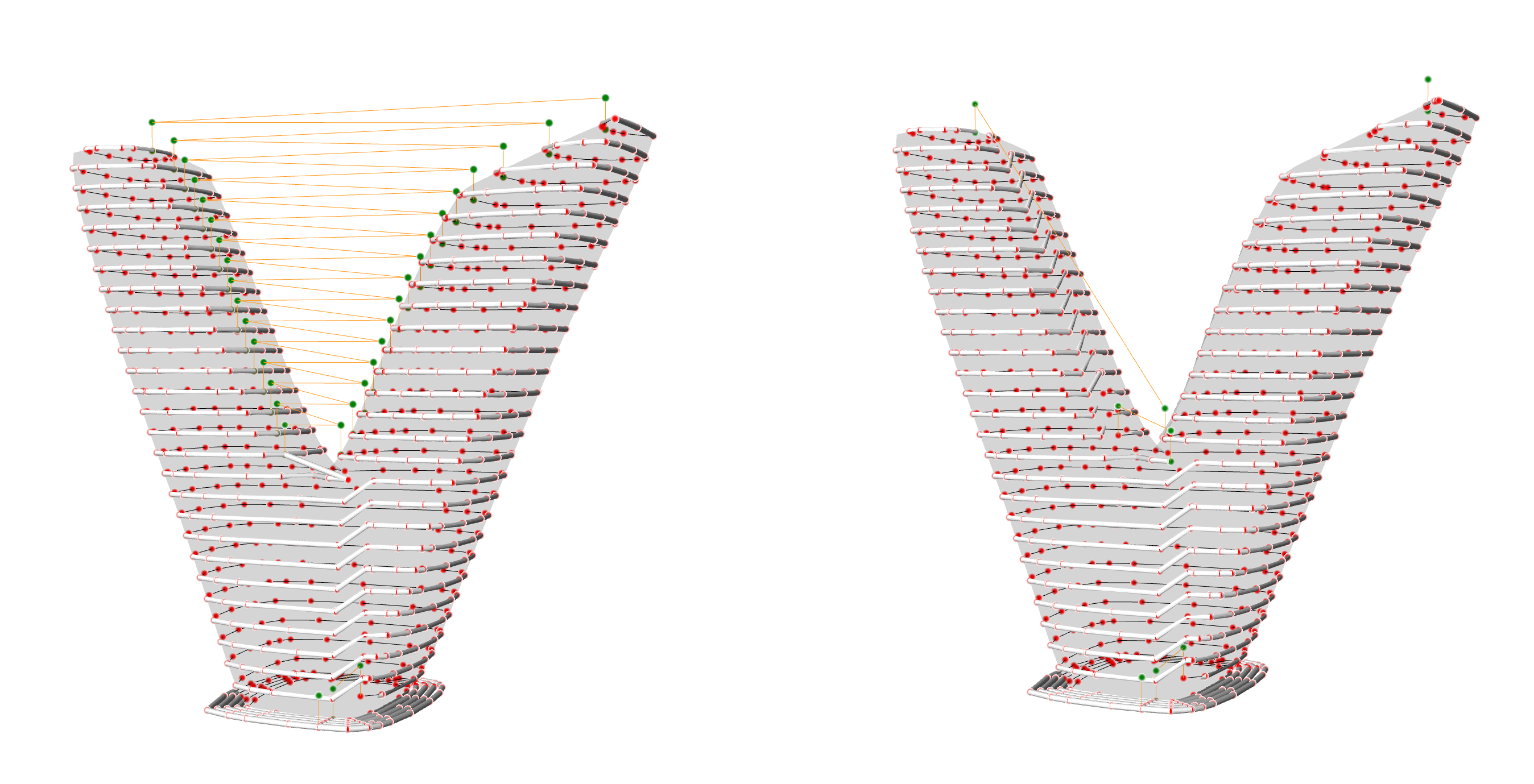

Vertical sorting visualization

What You'll Learn

  • Sorting paths into vertical layers (disconnected regions)
  • Reordering vertical layers for optimal printing
  • Setting blend radius for smooth robotic motion

The Problem

When slicing a V-shaped or branching model, a single horizontal slice may intersect multiple disconnected regions:

     Layer 5:    ●          ●    (two separate contours)
     Layer 4:    ●          ●
     Layer 3:     ●        ●
     Layer 2:      ●      ●
     Layer 1:       ●    ●
     Layer 0:        ●●●●        (one contour at base)

Without vertical sorting, the printer jumps between left and right branches randomly. With vertical sorting, each branch is printed completely before moving to the next.

The Solution

flowchart LR
    A[Planar Slicing] --> B[Sort into Vertical Layers]
    B --> C[Reorder Vertical Layers]
    C --> D[Print Organization]

Step-by-Step Walkthrough

1. Standard Planar Slicing

from compas.datastructures import Mesh
from compas.geometry import Point
from compas_slicer.slicers import PlanarSlicer
from compas_slicer.pre_processing import move_mesh_to_point

mesh = Mesh.from_obj(DATA_PATH / 'distorted_v_closed_mid_res.obj')
move_mesh_to_point(mesh, Point(0, 0, 0))

slicer = PlanarSlicer(mesh, layer_height=5.0)
slicer.slice_model()

2. Sort into Vertical Layers

from compas_slicer.post_processing import sort_into_vertical_layers

sort_into_vertical_layers(
    slicer,
    dist_threshold=25.0,    # Max distance to group paths together
    max_paths_per_layer=25  # Max paths per vertical layer
)

This groups paths into "vertical layers" - continuous vertical columns that can be printed without jumping.

Parameters:

Parameter Description
dist_threshold Maximum XY distance between paths to be in same vertical layer
max_paths_per_layer Limit on paths per vertical layer (prevents huge groups)

3. Reorder Vertical Layers

from compas_slicer.post_processing import reorder_vertical_layers

reorder_vertical_layers(slicer, align_with="x_axis")

Orders the vertical layers for optimal printing sequence. Options:

Mode Description
"x_axis" Left to right
"y_axis" Front to back
"centroids" By centroid position

4. Standard Post-Processing

from compas_slicer.post_processing import generate_brim, simplify_paths_rdp, seams_smooth

generate_brim(slicer, layer_width=3.0, number_of_brim_offsets=5)
simplify_paths_rdp(slicer, threshold=0.7)
seams_smooth(slicer, smooth_distance=10)

5. Print Organization with Blend Radius

from compas_slicer.print_organization import (
    PlanarPrintOrganizer,
    set_extruder_toggle,
    add_safety_printpoints,
    set_linear_velocity_constant,
    set_blend_radius,
)

print_organizer = PlanarPrintOrganizer(slicer)
print_organizer.create_printpoints()

set_extruder_toggle(print_organizer, slicer)
add_safety_printpoints(print_organizer, z_hop=10.0)
set_linear_velocity_constant(print_organizer, v=25.0)

# Blend radius for smooth robot motion
set_blend_radius(print_organizer, d_fillet=10.0)

What is blend radius?

Blend radius (or fillet) smooths sharp corners in the robot path. Instead of stopping at each point, the robot blends through with a curved motion.

  • d_fillet=0: Stop at each point (precise but slow)
  • d_fillet=10: 10mm blend radius (smooth and fast)

Complete Code

--8<-- "examples/3_planar_slicing_vertical_sorting/example_3_planar_vertical_sorting.py"

Running the Example

cd examples/3_planar_slicing_vertical_sorting
python example_3_planar_vertical_sorting.py --visualize

When to Use Vertical Sorting

Use vertical sorting when your model has:

  • Branching geometry: Y-shapes, trees, coral-like structures
  • Multiple parts: Several objects on one build plate
  • Islands: Disconnected regions at the same height

Key Takeaways

  1. Vertical sorting groups continuous regions: Print one branch completely before moving to the next
  2. Reordering optimizes travel: Choose sensible order to minimize jumps
  3. Blend radius matters for robots: Smooth motion reduces wear and improves quality
