Introduction

This tutorial introduces the core concepts and architecture of COMPAS Slicer.

Overview

COMPAS Slicer is organized into four main components:

graph TB
    subgraph "1. Geometry"
        Layer --> Path
        Path --> PrintPoint
    end

    subgraph "2. Slicers"
        PlanarSlicer
        InterpolationSlicer
        ScalarFieldSlicer
    end

    subgraph "3. Print Organization"
        PrintOrganizer --> PrintPoint
    end

    subgraph "4. Output"
        GCode
        JSON
        Grasshopper
    end
Component Purpose
Geometry Core geometric entities: Layer, Path, PrintPoint
Slicers Generate sliced paths from meshes
Print Organizers Embed fabrication parameters into paths
Visualization Display results in Rhino/Grasshopper

Geometry

Layer

A Layer represents a single slice of the model. In planar slicing, all points in a layer are at the same Z height. In non-planar slicing, points can vary in height.

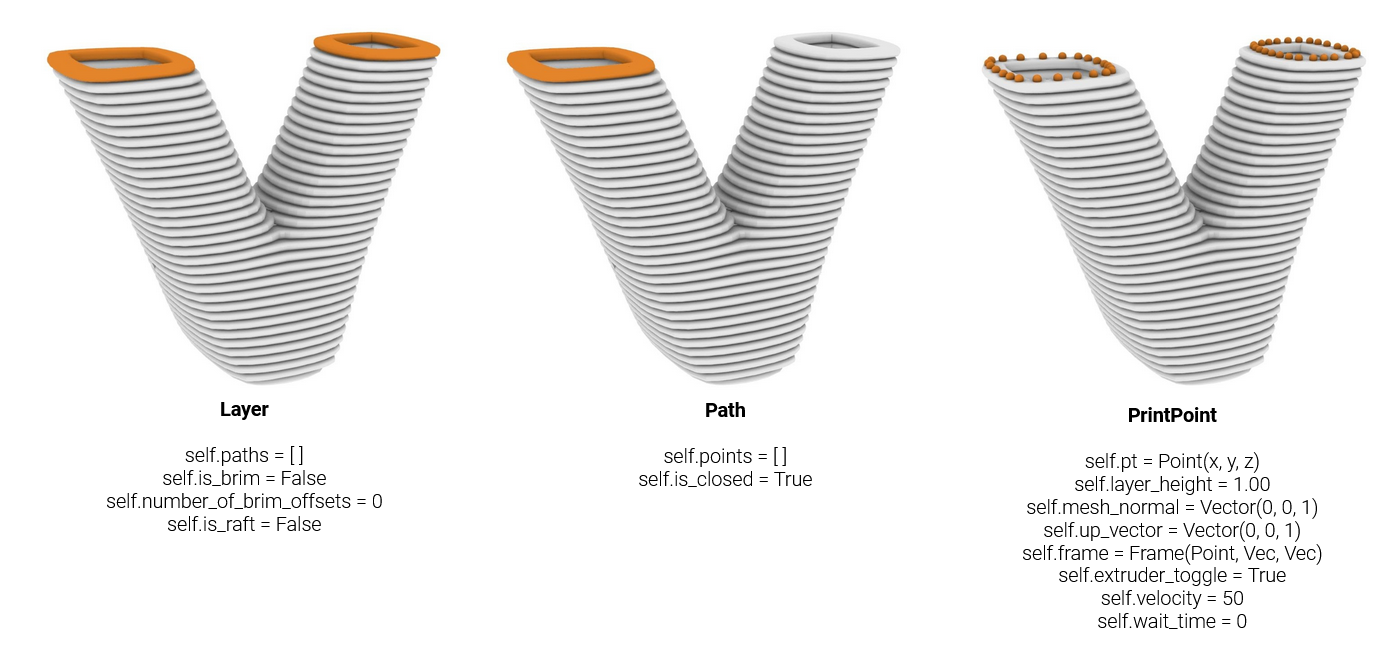

Layer concept

VerticalLayer

A VerticalLayer groups multiple layers together - useful for models with branching geometry.

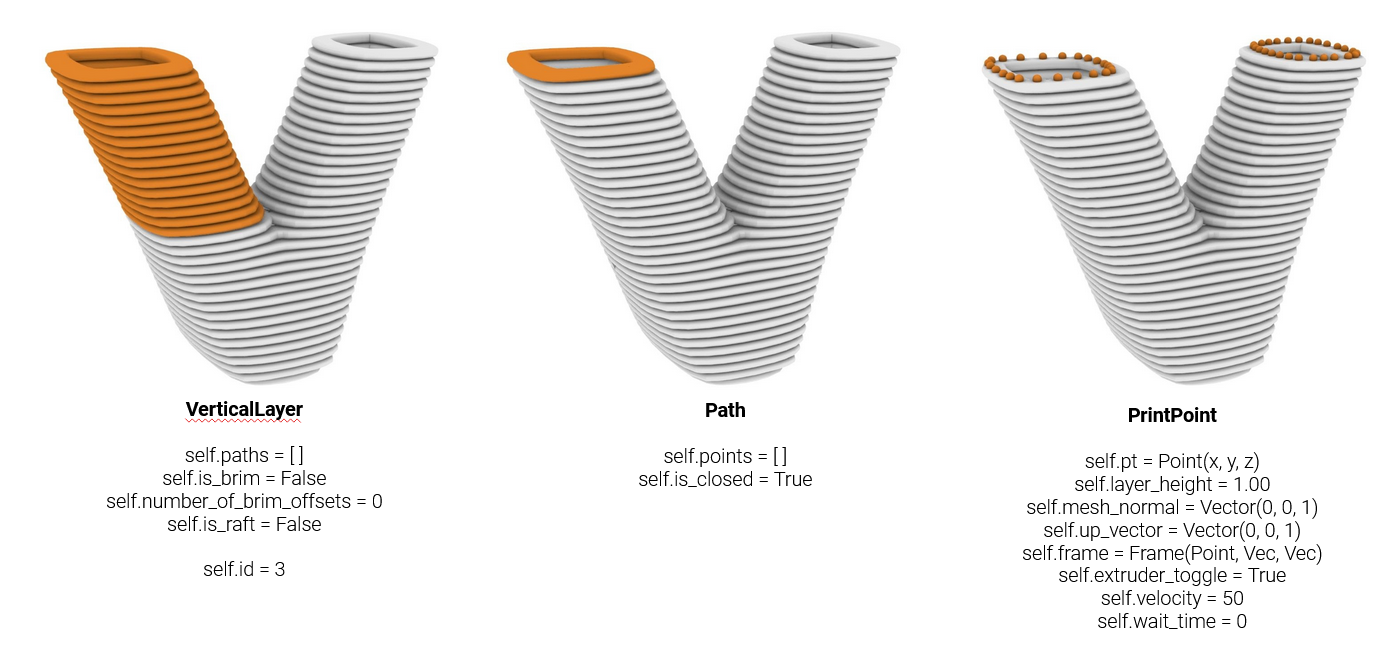

Vertical Layer concept

Path

A Path is a closed or open contour containing a list of points. A layer can contain multiple paths (e.g., for models with holes or branches).

PrintPoint

A PrintPoint extends a geometric point with fabrication parameters:

  • Velocity
  • Extrusion rate
  • Layer height
  • Up vector (tool orientation)
  • Extruder toggle (on/off)

Slicers

Slicer Description Use Case
PlanarSlicer Intersects mesh with horizontal planes Standard FDM printing
InterpolationSlicer Interpolates between boundary curves Non-planar surfaces, shells
ScalarFieldSlicer Follows scalar field contours Custom layer patterns

After slicing, print organizers convert geometric points to PrintPoints with fabrication data:

from compas_slicer.print_organization import PlanarPrintOrganizer

organizer = PlanarPrintOrganizer(slicer)
organizer.create_printpoints()

# Add fabrication parameters
set_linear_velocity_constant(organizer, velocity=25)
set_extruder_toggle(organizer, slicer)
add_safety_printpoints(organizer, z_hop=5.0)

Package Structure

compas_slicer/
├── geometry/          # Layer, Path, PrintPoint
├── slicers/           # PlanarSlicer, InterpolationSlicer, etc.
├── print_organization/# PrintOrganizers and utilities
├── pre_processing/    # Mesh preparation (positioning, boundaries)
├── post_processing/   # Path modifications (brim, raft, sorting)
├── utilities/         # Helper functions
└── visualization/     # Viewer utilities
