Mesh slicing

import os
import numpy as np

from compas.geometry import Point
from compas.geometry import Vector
from compas.geometry import Plane
from compas.geometry import Polyline
from compas.datastructures import Mesh

from compas_view2.app import App

from compas_cgal.slicer import slice_mesh

HERE = os.path.dirname(__file__)
FILE = os.path.join(HERE, '../..', 'data', '3DBenchy.stl')

# ==============================================================================
# Get benchy and construct a mesh
# ==============================================================================

benchy = Mesh.from_stl(FILE)

# ==============================================================================
# Create planes
# ==============================================================================

# replace by planes along a curve

bbox = benchy.bounding_box()

x, y, z = zip(*bbox)
zmin, zmax = min(z), max(z)

normal = Vector(0, 0, 1)
planes = []
for i in np.linspace(zmin, zmax, 50):
    plane = Plane(Point(0, 0, i), normal)
    planes.append(plane)

# ==============================================================================
# Slice
# ==============================================================================

M = benchy.to_vertices_and_faces()

pointsets = slice_mesh(M, planes)

# ==============================================================================
# Process output
# ==============================================================================

polylines = []
for points in pointsets:
    points = [Point(*point) for point in points]
    polyline = Polyline(points)
    polylines.append(polyline)

# ==============================================================================

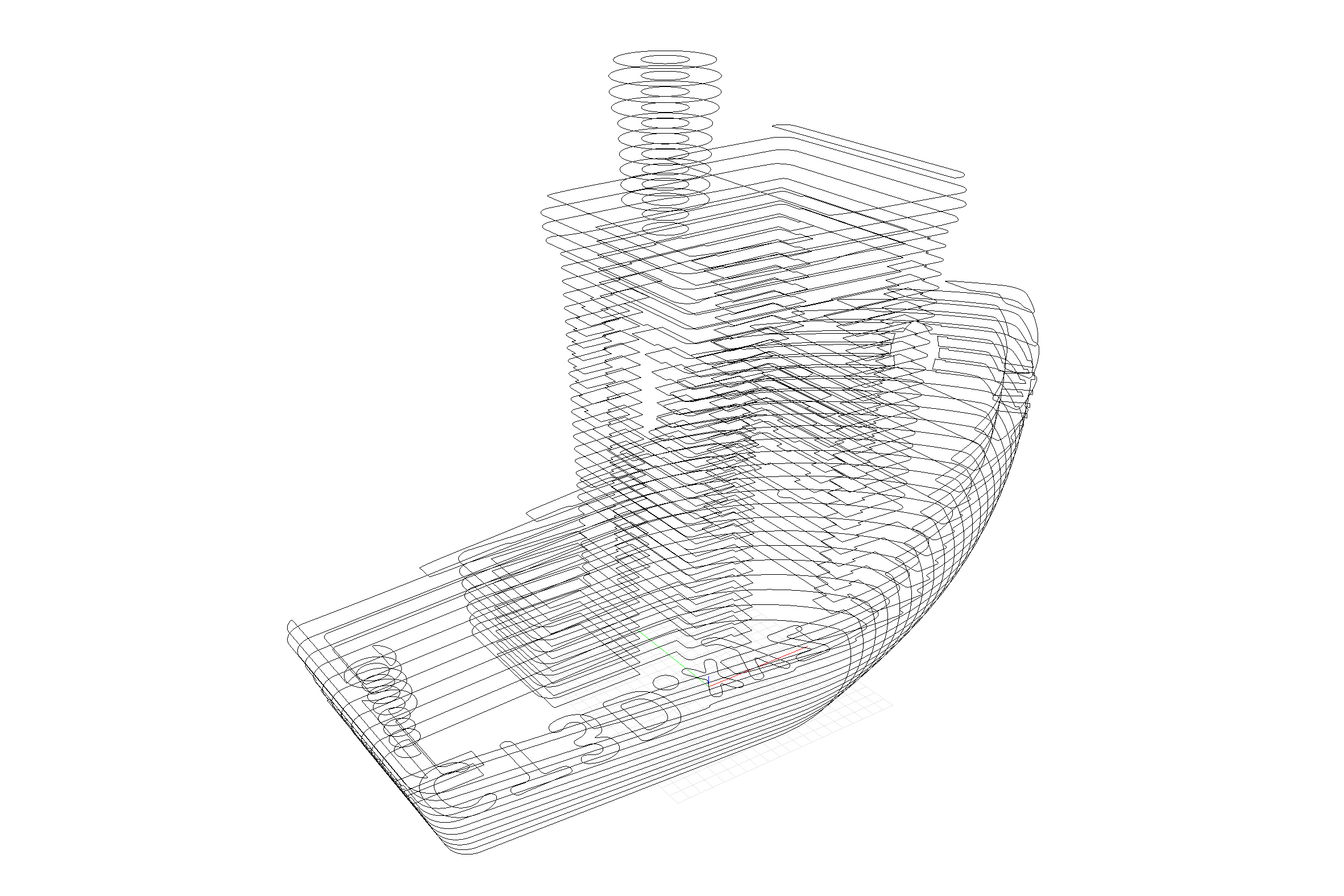

# Visualize
# ==============================================================================

viewer = App()

for polyline in polylines:
    viewer.add(polyline, linecolor=(1, 0, 0))

viewer.run()
