Plane Projection

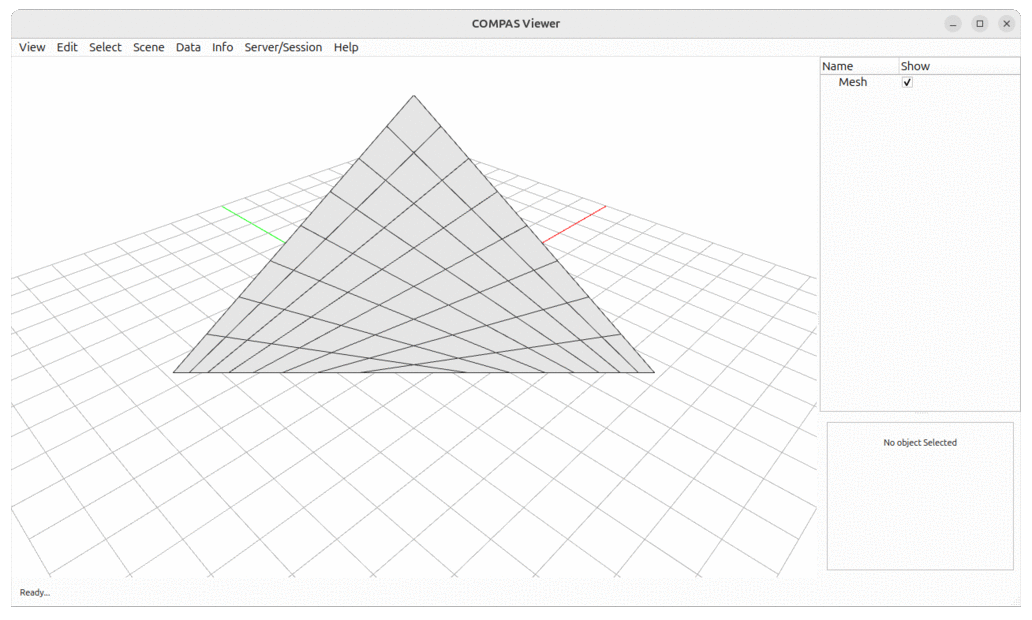

This example demonstrates how to project mesh faces vertices onto a plane. Edges of the mesh use edge strain constraints of a) mesh edges and b) diagonals of each face to preserve the overall shape and reduce distortion while flattening the mesh.

../_images/plane_projection.gif
import compas
from compas.geometry import Scale
from compas.geometry import Translation
from compas_viewer import Viewer

from compas_shapeop.meshsolver import MeshSolver

T = Translation.from_vector([-5, -5, -3]) * Scale.from_factors([2, 2, 2])
s = MeshSolver.from_obj(compas.get("hypar.obj"), T)
s.fix_vertices(weight=0.01)
s.constrain_edge_lengths()
s.constrain_face_diagonals()
s.constrain_face_planarity()

viewer = Viewer()
mesh_obj = viewer.scene.add(s.mesh)


@viewer.on(interval=1)
def update(frame):
    s.solve(1)
    mesh_obj.update(update_data=True)


viewer.show()
